ACRYLITE® Softlight

The properties of the diffusers in the ACRYLITE® Softlight series offer numerous design options for lighting applications. These range from backlit covers to ambient light by means of finely graded forward and/or backward scattering, light transmission for ambient effects and frosted surfaces in the extrusion (for selected molding compounds).

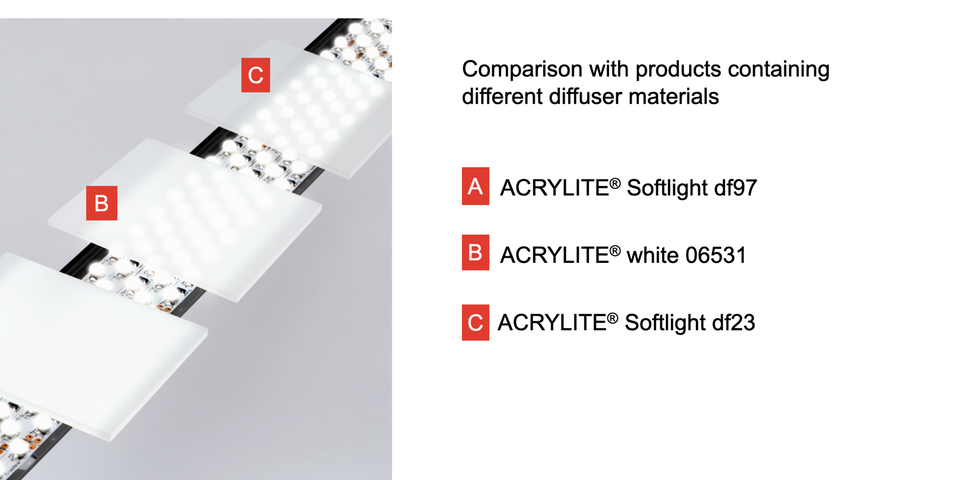

Example scattering

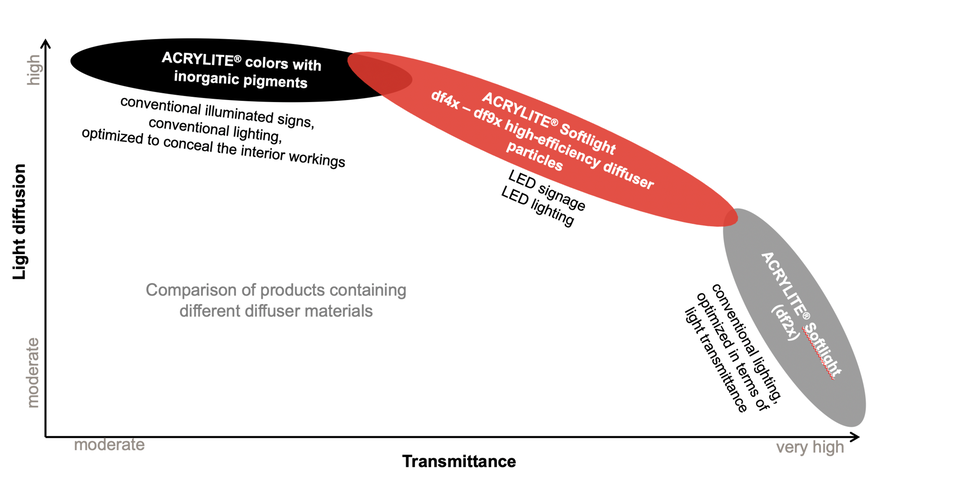

Scattering effects
Edge lighting
Backlighting

Downloads

Applications and Ideas

(Co-) Extrusion

  • Frosted Surfaces
  • Transparent & Softlight layer

Household Appliances

  • Ambient light guide
  • Displays (Backlight units)
  • Black Panel Surfaces
  • Illuminated switches/knobs
  • Decorative body parts (thermoformed)

Automotive

  • Lightguides (AMECA)
  • Rear lights (AMECA, colored)
  • Ambient lighting

Lighting

  • Lighting covers
  • Diffusors

ACRYLITE® Softlight df2x

  • Only forward scattering
  • Very high transmittance, even with high wall thicknesses
  • Weak to medium scattering
  • Frosted surface when extruded
  • For back-lit or edge-lit applications
  • Ambient lighting
  • AMECA
  • ACRYLITE® Softlight df20
  • ACRYLITE® Softlight df21
  • ACRYLITE® Softlight df22
  • ACRYLITE® Softlight df23
  • Available in special colors, e.g. ACRYLITE® Softlight df23 red 33691
  • Available in basic grades as well as impact-modified

ACRYLITE® Softlight df4x

  • Forward and backward scattering
  • Good balance of light scattering and transmittance with wall thicknesses up to 3mm
  • Medium to strong scattering
  • Frosted surface when extruded For back-lit applications
  • Greatly reduced hot spots with LED light sources
  • ACRYLITE® Softlight df42
  • ACRYLITE® Softlight df43
  • ACRYLITE® Softlight df44
  • ACRYLITE® Softlight df44
  • Available in special colors, e.g. ACRYLITE® Softlight df45 weiß 0V606
  • Available in basic grades as well as impact-modified

ACRYLITE® Softlight df9x

  • Forward and backward scattering
  • balance of light scattering and transmittance with wall thicknesses up to 3mm
  • Medium to strong scattering For back-lit applications
  • greatly reduced hot spots with LED light sources
  • AMECA
  • ACRYLITE® Softlight df93
  • ACRYLITE® Softlight df97
  • Available in special colors, e.g. ACRYLITE® Softlight df92 grau 7V376
  • Available in basic grades as well as impact-modified
